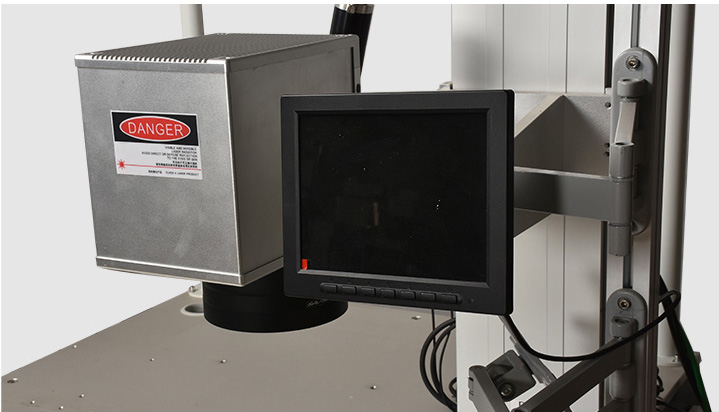

QCW quasi continuous laser welding machine
QCW quasi continuous
Constant beam qualityin fullpower range
High peak power,can process copper,aluminum and other high reflection materials
All fiber structure maintenance free
Up to 30%electro-optic conversion efficiency, economic and environmental protection
Superior output power /energy stability
Compact structure and forced air cooling
Product parameters
| model | CZ-Q80 | CZ-Q150 | CZ-Q300 |
| wavelength | 1080+5nm | ||
| laser type | quasi continuous(qcw) | ||
| average power | 80w | 150W | 300W |
| peak power | 1200W | 1500W | 2500W |
| energy fluctuation | < ± 1% | ||

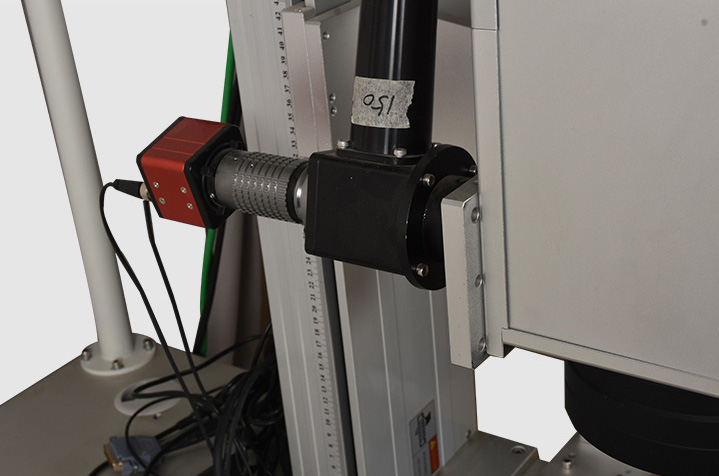

| aiming and positioning mode | Laser diode red light indication< span class="font1">CCD | ||
| cooling method | Air cooling | ||
| positioning accuracy | 0.02mm | ||
| device power consumption | 1500W | 2500W | 3500W |
| power requirements | 220v/50hz | ||
Sample Display
