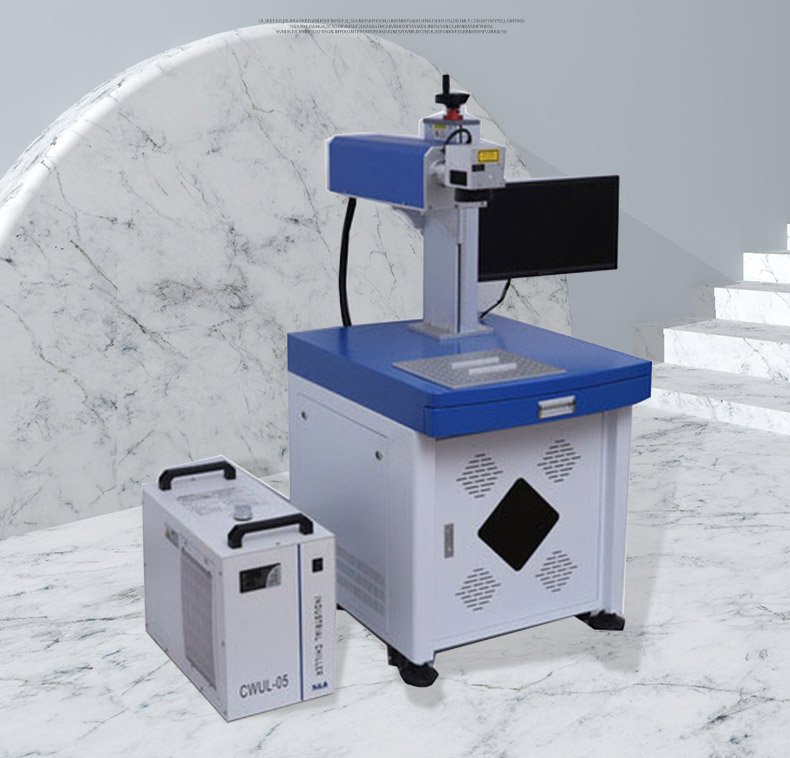

UV laser marking machine
UV marking machine
Characteristic
aintenance free and consumable free
Adjustable pulse frequency
long-life
Full Chinese page
Clearly marked
Controllable carving depth
SMALL POWERHASAIR COOLING MODE.AND HIGHPOWER ALL ADOPTS WATER COOLING MODE
MAINTENANCE FREE, NO CONSUMABLES.AND THE OPERATION COST OF THE EQUIPMENT IS VERYLOW
THE LASER PULSE FREQUENCY IS HIGHAND THE MARKING SPEED IS FAST
THE SERVICELIFE OF THELASERISUPTO20000-30000 HOURS NORMAL TEMPERATURE AND STABLE OPERATIONENVIRONMENT IS REQUIRED
THE MARKING SOFTWARE HAS AFULL CHINESE INTERFACE, WHICH IS SIMPLE ANDINTUITIVE TO OPERATE
THE DFPTHOE CARVNGCAN BE CONTROLLEDATWILLWHICH CAN ADAPT TOA VARIETY OF PRODUCTS
THE MARKING CONTENT ISFLEXIBLE AND CHANGEABLE, AND THE LINESARE EXOUISITE
Product parameters
| Brand | Xingze Optoelectronics | power | 3/5/10/15/25w |
| Laser wavelength | 355nm | Pulse width | 15-100ns |
| Monopulse energy | 0.25-1.2mj | Beam quality | M2≤1.2 |
| Pulse repetition rate | l-50kHz | Minimum line width | 0.01mm |
| Marking range | 70*70-300*300mm optional | ||
| Engraving line speed | 100-1000 characters/second (110mm shoreline font with different configuration field mirror, 1mm high) | ||
| Minimum character | 0.2mm | Repetition accuracy | 0.01mm |
| Engraving depth | ≤ 0.5mm, depending on the material | Power consumption of the whole machine | W1500W |
| Electricity demand | 220v/50hz | Cooling mode of complete machine | water-cooling |
| Operating ambient temperature & nbsp;& nbsp; | 15-35 ° C | ||
Sample Display
