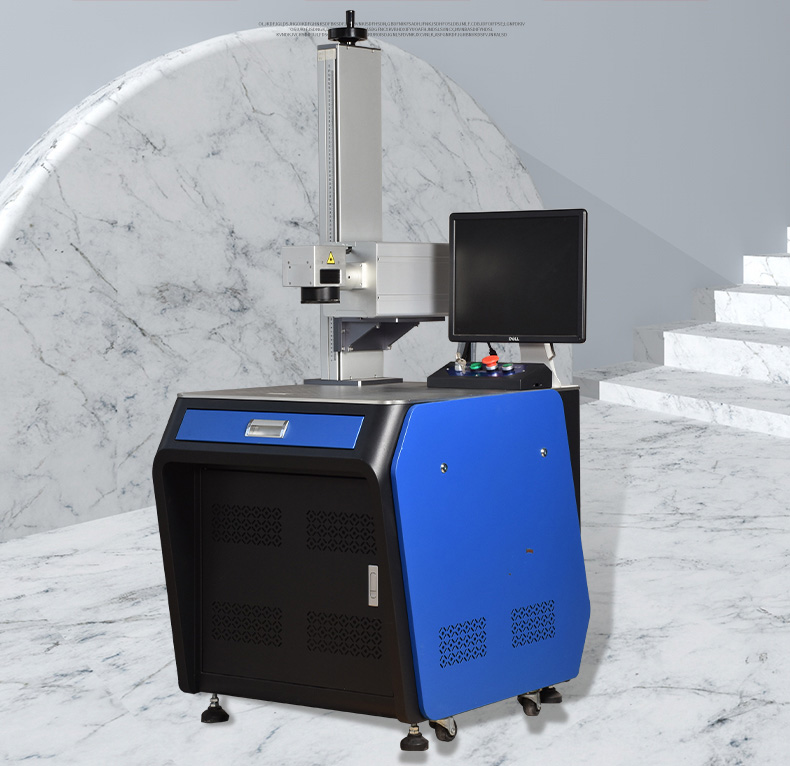

Green laser marking machine

Green light marking machine

Green laser marking machine is mainly used for engraving the surface and interior of glass and crystal products, such as mobile phone screen, LCD screen, optical components, automotive glass, etc. At the same time, it can be applied to the surface processing of most metal and non-metal materials and the processing of coating film. Such as hardware, ceramics, glasses, clocks, PCs, electronic devices, various instruments, PCB boards and control panels, nameplates, display boards, plastics, etc.

Characteristic
Maintenance free and consumable free
Adjustable pulse frequency
long-life
Full Chinese page
Clearly marked
Controllable carving depth

SMALL POWER HASAIR COOLING MODE,ANDHIGH POWER ALLADOPTSWATER COOLING MODE


MAINTENANCE FREE,NO CONSUMABLES.AND THE OPERATION COST OF THE EQUIPMENTISVERY LOW


THE LASER PULSE FREOUENCY IS HIGH AND THE MARKING SPEEDIS FAST


THE SERVICELIFE OF THE LASERIS UP TO 20000-30000 HOURS NORMAL TEMPERATURE AND STABLE OPERATIONENVIRONMENT IS REQUIRED

THE MARKING SOFTWARE HASAFULLCHINESE INTERFACE. WHICH IS SIMPLE AND INTUITIVE TO OPERATE


THE DEPTHOF CARVINGCAN BE CONTROLLEDATWILL.WHICH CAN ADAPT TOA VARIETY OF PRODUCTS


THE MARKING CONTENTIS FLEXIBLEAND CHANGEABLE, AND THE LINESARE EXQUISITE


Product parameters


brandXingze Optoelectronicspower3/5/10/15/20/25/30w
Laser wavelength532nmPulse width10-90ns
Monopulse energy0.15-1.0mjBeam qualityM2≤L2
Pulse repetition ratel-50kHzMinimum line width0.01mm
Marking range70*70-300*300mm optional
Engraving line speed100-1000 characters/second (110mm field mirror in different configurations, single line font, 1mm high)
Minimum character0.2mmRepetition accuracy0.01mm
Engraving depth≤ 0.5mm, depending on the materialPower consumption of the whole machine≤ 1000W
Electricity demand220v/50hzCooling mode of complete machineAir/water cooled
Operating ambient temperature 15-35 ° C




Sample Display
