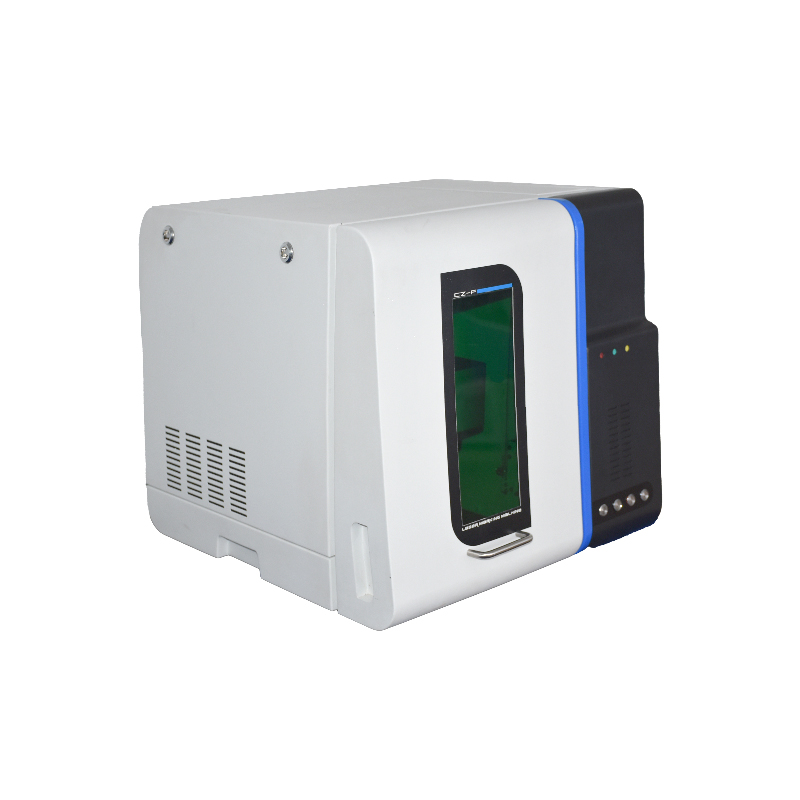

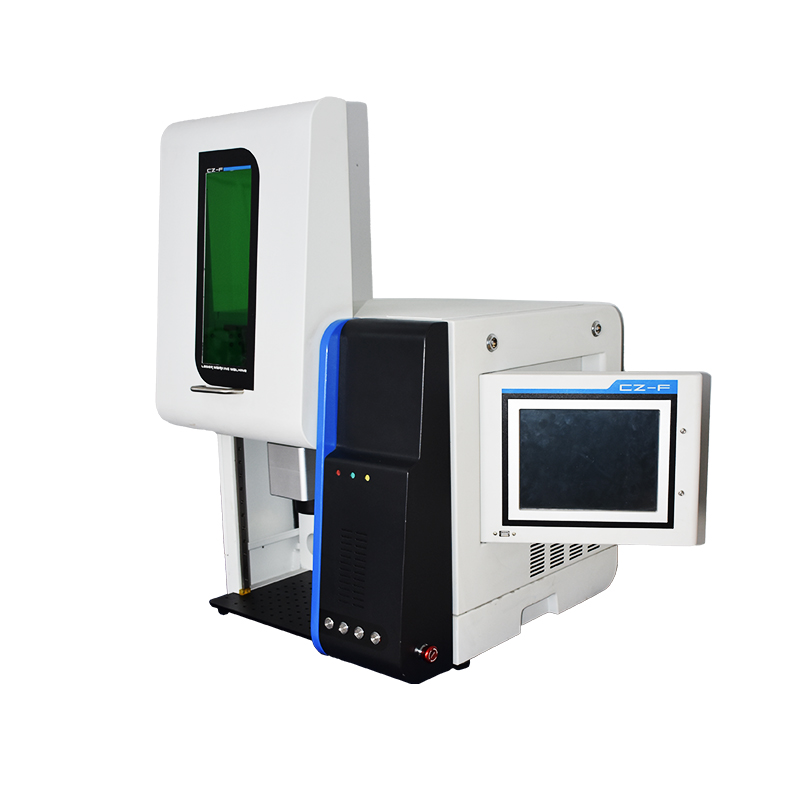

Fully enclosed small marking machine
Optical fiber marking machine
MAINTENANCE FREE, NO CONSUMABLES,AND THE OPERATION COST OF THE EQUIPMENT ISVERY LOW
THE LASER PULSE FREQUENCY IS HIGHAND THE MARKING SPEED IS FAST
Product parameters
power | 20/30/50/100/150/200w | Adjustable waveform | Fixed/adjustable |
Laser wavelength | 1064-1070nm | Pulse width | l~200ns |
Monopulse energy | 0.5-l2mj | Beam quality | M2≤1.2 |
Pulse repetition rate | l-2000kHz | ||
Marking range | 70*70-30 (t300mm optional) (it can be expanded to 1200*1200 after three-axis module is selected) | ||
Engraving line speed | 100-1000 characters (110mm field mirror in different configurations, shoreline font, 1mm high) | ||
Minimum character | 0.3mm | Repetition accuracy | 0.01mm |
Engraving depth | ≤ 0.5mm, depending on the material | Power consumption of the whole machine | 500-1000w |
Electricity demand | 220v/50hz | Cooling mode of complete machine | Air cooling |
Operating ambient temperature | 0-40 ° C | Minimum line width | 0.01mm |
Sample Display
