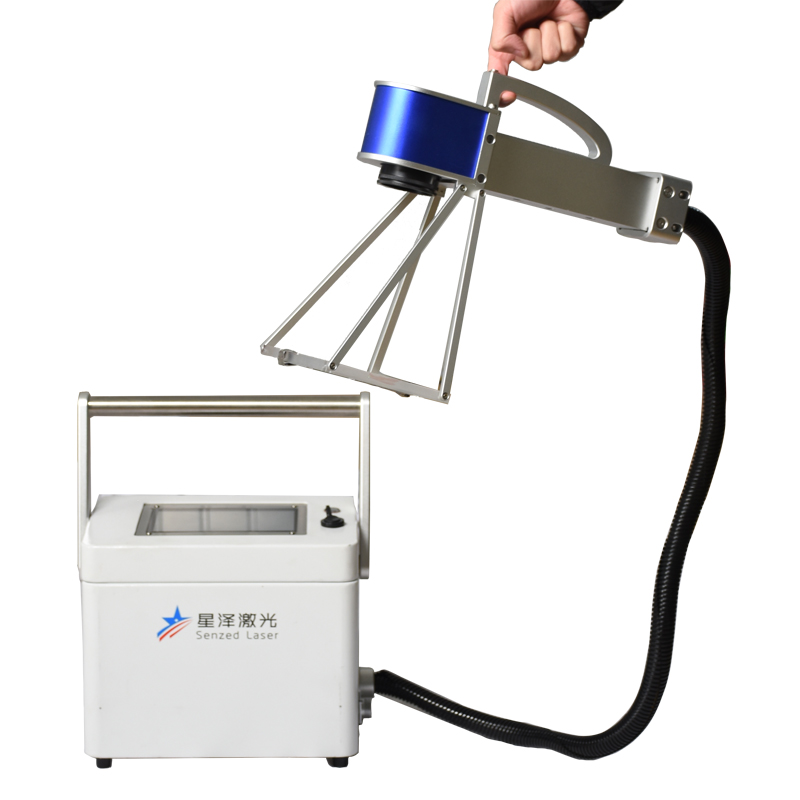

Small handheld laser marking machine
Optical fiber marking machine
Product parameters
power | 20/30/50/100/150/200w | Adjustable waveform | Fixed/adjustable |
Laser wavelength | 1064-1070nm | Pulse width | l~200ns |
Monopulse energy | 0.5-l2mj | Beam quality | M2≤1.2 |
Pulse repetition rate | l-2000kHz | ||
Marking range | 70*70-30 (t300mm optional) (it can be expanded to 1200*1200 after three-axis module is selected) | ||
Engraving line speed | 100-1000 characters (110mm field mirror in different configurations, shoreline font, 1mm high) | ||
Minimum character | 0.3mm | Repetition accuracy | 0.01mm |
Engraving depth | ≤ 0.5mm, depending on the material | Power consumption of the whole machine | 500-1000w |
Electricity demand | 220v/50hz | Cooling mode of complete machine | Air cooling |
Operating ambient temperature | 0-40 ° C | Minimum line width | 0.01mm |
Sample Display
