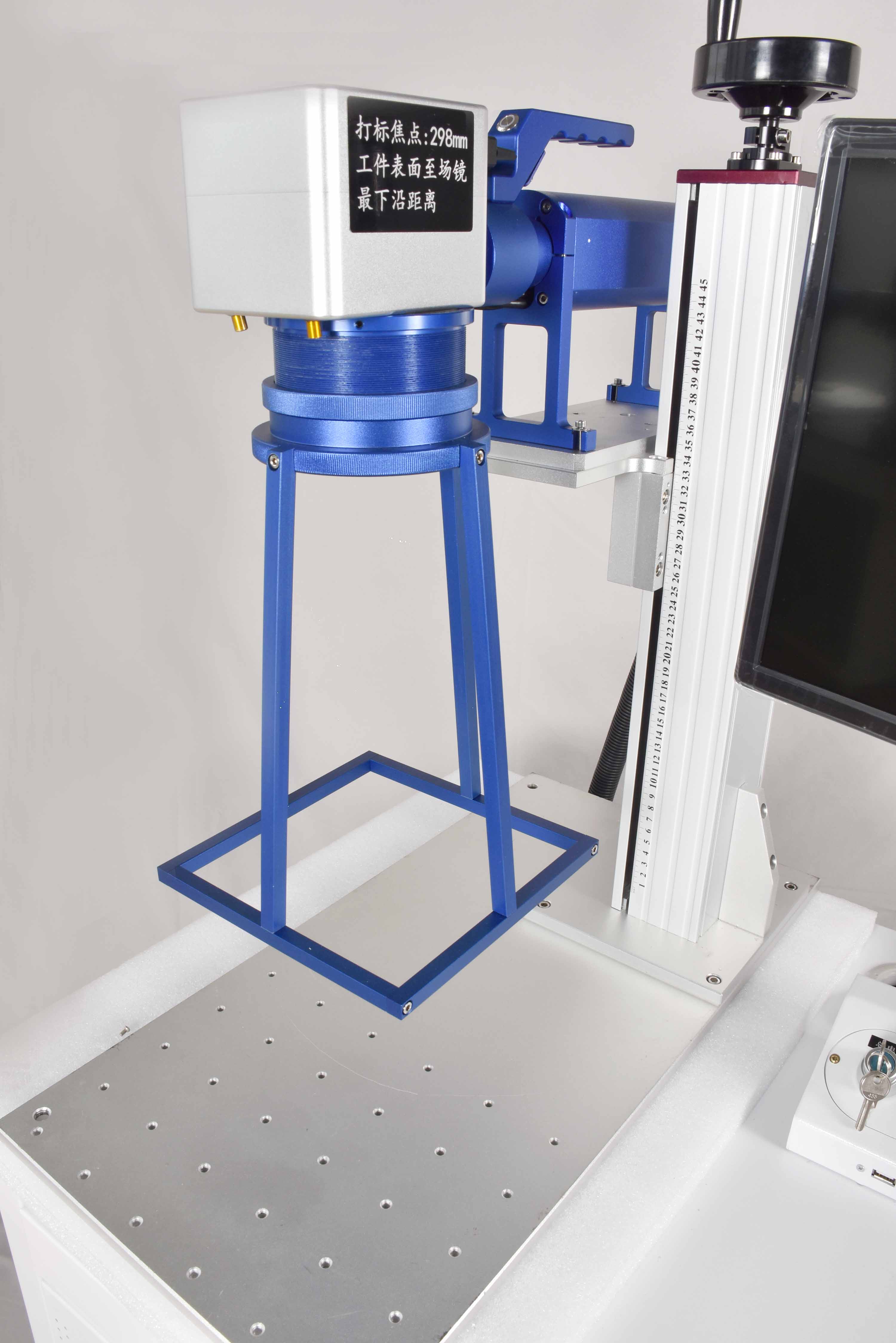

Static/handheld marking machine

Optical fiber marking machine

Applicable materials: applicable to all metal materials and most non-metallic materials.


Application Industry: it is widely used in many fields, such as hardware products, sanitary ware, medical devices, auto parts, integrated circuits, electronic components, wires and cables, rubber and plastics, LCD screens, gold and silver jewelry, tablet accessories for computers and mobile phones, food and beverage packaging, cosmetics packaging, pharmaceutical packaging, mechanical processing, aerospace, military products, etc.



THEUNIOUEFULLYSEALED OPTICAL PATHDESIGN ENSURES THE STABLE OPERATIiON OF THE EQUIPMENT.


MAINTENANCE FREE, NO CONSUMABLES,AND THE OPERATION COST OF THE EQUIPMENT ISVERY LOW 激光脉冲频率高,标刻速度快THE LASER PULSE FREQUENCY IS HIGHAND THE MARKING SPEED IS FAST


THE ELECTRO-OPTICCONVERSIONEFFICIENCYISASHIGH AS 30%.WHICH ISENERGY-SAVING AND EFFICIENT.THE POWER CONSUMPTION OF THE WHOLE MACHINE IS ONLY 500-1000W PER HOUR

THE MARKING SOFTWARE HASAFULLCHINESE INTERFACE, WHICHIS SIMPLE AND INTUITIVE TOOPERATE


THE EQUIPMENT HAS THEADVANTAGES OF SMALL VOLUME, LIGHTWEIGHTAND CONVENIENTMOVEMENTANDINSTALLATION


THEMARKING CONTENTISFLEXIBLEAND CHANGEABLE, AND THE LINESARE EXOUISITE


Product parameters


power20/30/50/100/150/200wAdjustable waveformFixed/adjustable
Laser wavelength1064-1070nmPulse widthl~200ns
Monopulse energy0.5-l2mjBeam qualityM2≤1.2
Pulse repetition ratel-2000kHz

Marking range70*70-30 (t300mm optional) (it can be expanded to 1200*1200 after three-axis module is selected)
Engraving line speed100-1000 characters (110mm field mirror in different configurations, shoreline font, 1mm high)
Minimum character0.3mmRepetition accuracy0.01mm
Engraving depth≤ 0.5mm, depending on the materialPower consumption of the whole machine500-1000w
Electricity demand220v/50hzCooling mode of complete machineAir cooling
Operating ambient temperature0-40 ° CMinimum line width0.01mm




Sample Display
